AI Patent Drawings: Choose Views, Check Labels and Verify Exports
Patent drawings should explain the solution. Decide which structure, process or data needs explanation before choosing the view. A professional-looking line drawing does not prove that its connections, sections or labels are correct.
Match the figure to the relationship
| Purpose | Possible figure | Review focus |
|---|---|---|
| Connections and assembly | Overall, detail and sectional views | Position, connection and occlusion |
| Method steps | Flowchart | Conditions, branches, loops and termination |
| Modules and signals | Block or sequence diagram | Interfaces, direction and participants |
| Measurements | Plot or table | Data source, units and test conditions |
A flowchart renderer follows its input; it does not establish that the process is logically correct. An image model can add or omit structures, so compare the result against the disclosure.
Give the generator a figure brief
A useful brief identifies the view, the relationships to show and the facts that must remain unchanged. “Draw a professional patent image” gives little guidance about the invention.
For a synthetic positioning clamp, a brief might say:
Show an overall perspective view of a base, fixed jaw and movable jaw. The movable jaw travels along a guide slot under screw actuation. Show the opposing V-shaped locating surfaces. Use the confirmed component names; flag unclear connections instead of inventing internal geometry. Do not add dimensions or performance data that are absent from the disclosure.
Before using this brief, resolve how the screw engages the base and movable jaw. A prompt cannot replace that engineering information. Keep the figure brief with the invention disclosure so later edits have a common source.
Start with a revealing test view
Use synthetic or authorized de-identified material and choose a view containing an important interaction. Check component count, connections, movement and consistency before extending the set. Several pictures with similar outlines are not necessarily consistent engineering views.

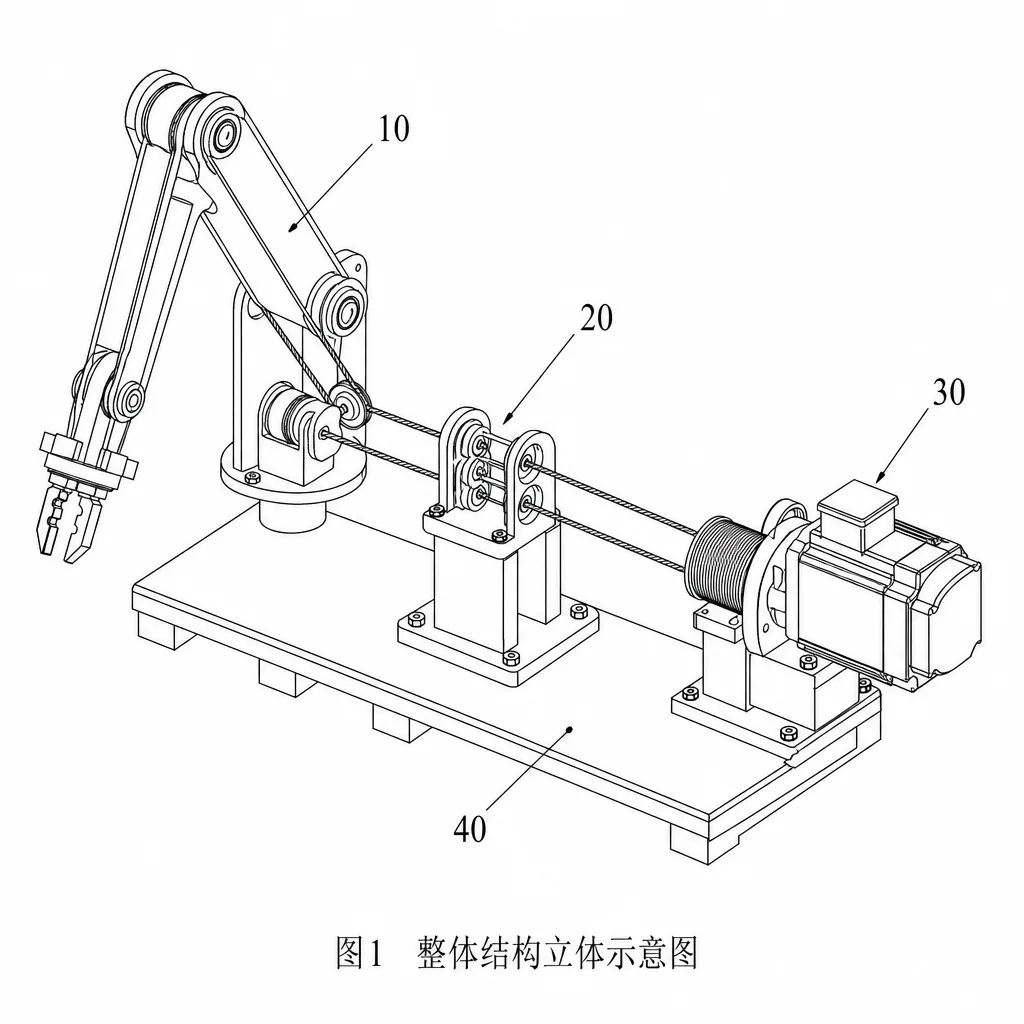

This illustration is from Patent Task's own test project, not a customer deliverable or a benchmark result.
The drawing product page presents first-figure preview and subsequent unlocking. Confirm the current trial, access and export conditions for the project.
Check labels against the text
Maintain a record of each component name, reference sign, figure number and corresponding text location. Review references after deleting or redrawing a figure. For a section view, check the cutting location and internal geometry.
The patent drawing reference-number guide includes a worked register and a free blank download. It focuses on numbering and consistency; this page covers choosing, generating and reviewing the figures themselves.
Plots and chemical structures need actual data or defined structural information. Do not ask an image model to invent unmeasured results.
Review the first figure before creating the rest
| Check | Pass evidence | Reason to revise |
|---|---|---|
| Component set | Each intended component is identifiable | An extra screw, missing pad or merged part |
| Mechanical relationships | Connections agree with the disclosure | A movable part appears fixed or disconnected |
| View choice | The figure reveals the intended relationship | An important connection is hidden |
| Labels | Signs agree with the register and leader lines identify the intended part | A sign points to two different components |
| Cross-view consistency | The next view shows the same structure | Component counts or positions change between views |
Write a correction in terms of the mismatch: “sign 30 should identify the movable jaw, not the guide slot.” After regeneration, recheck the whole figure; a local correction can change another detail. This is a review method, not a guarantee that every requested edit will be reproduced accurately.
File format is not editability
The current drawing workspace offers full-project exports as Word (DOCX), ZIP and Markdown. ZIP is a package and Word is a document container; neither guarantees that each included figure is an editable vector drawing. Open the downloaded file and inspect its contents, resolution and labels.
Can a generated image be submitted immediately?
Review the technical content and the target office's current drawing requirements first. Preview availability or a completed-generation status is not a filing-acceptance guarantee.
Prepare a disclosure, check field-specific figure needs, then explore the drawing service.
Should I generate more views to make the application look complete?
Add a view when it explains something the current set does not. An overall view, a useful section and a detail can serve different purposes; several near-identical views may add little. Choose the set from the technical explanation and destination requirements.
Can I use the same figures in the written draft?
Use the reviewed set and its reference-number register as the source for the description. Check the correspondence again after export using the DOCX export checklist.
